GL Rolling Compactor Granulator

What is the GL Rolling Compactor Granulator

Machine Video Link: https://youtu.be/tFus8dtBQOQ

Absorbed foreign advanced technique of powder granulator, improved and heightened on the basis of foreign technique, this Rolling Compactor Granulator Machine is developed by our factory. It has more reasonable and compact structure, simply technological processes, easy operation and better performance. Powder materials can be made into even granules customer needs without adding any bonding agent when they run through the machine. As density of granules are larger, no any afterward process is needed so as to reduce technological process, reduce granulation cost and powder pollution and improve labor environment as well.

Item	Type
	GL240-80	GL240-160	GL300-250	GL360-300	GL450-350
Diameter of roll (mm)	Φ240	Φ240	Φ300	Φ360	Φ450
Width of roll (mm)	80	160	250	200	350
Max pressure of roll (t)	50	60	80	100	130
Revolution of roll (rpm)	8~20	8~20	8~20	8~20	8~20
Max thickness of roll (mm)	4	5	6	8	8
Capacity of pressed pill (kg/h)	250-500	500-900	700-2000	1000-4000	2000-7400
Productive capacity (kg/h)	80-150	150-300	300-600	600-1000	1000-2000
diameter of finished products (mm)	0.2-5	0.2-5	0.2-8	0.2-8	0.2-8
Main motor power (kw)	7.5	11	18.5	30	45
Total power (kw)	11.5	17	28	43	60
Overall dimension (mm)	1500×1800×	1500×2000×	1800×2000×	2000×2200×	2200×2500×
	3500	3800	4000	4200	4500
Weight (t)	5	6	8	10	13

Work Principle

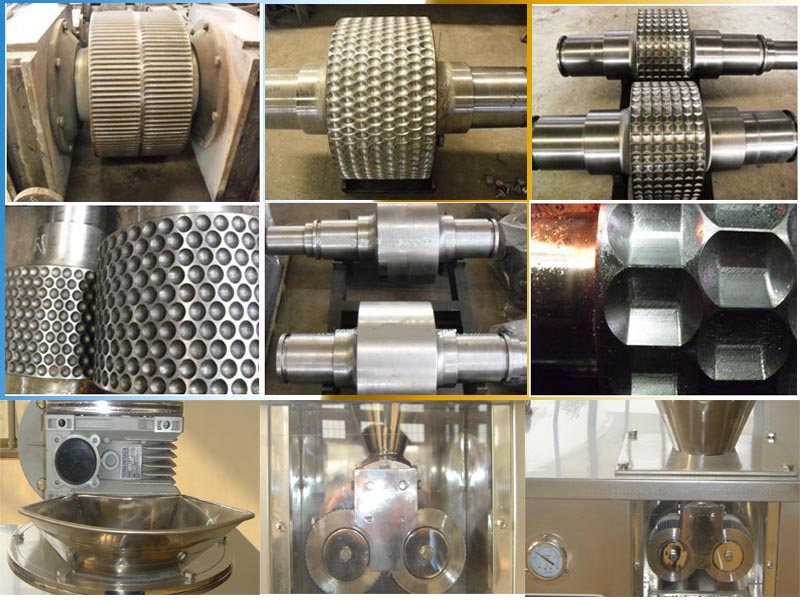

Vertical Feed Set After weight measured powder materials are sent laterally by the vibration hopper to the main feeder, deaerated by the stirring screw of the main feeder, pre-pressed and pushed into the arc grooves of left and right rollers. Driven by a pair of meshed gears, two rollers rotate in opposite direction with same speed, and powder materials are pressed into dense sheet while they run through rollers. Under the function of elastic recovery after rollers, they'll be separated from rollers and drop down, and fewer sheet not dropped will be scrapped off by the blade. Stripe grooves evenly distributed on the surface of rollers can prevent sliding when powder materials are fed into rollers. After crushed and granulated, they'll pass through the vibration sieve to be graded, and granules which meet requirement can be obtained. Powder after the sieve will return to the vibration hopper to be granulated circularly.

Product Details

Main Feature

1.  Making granules from dry powder directly without any bonding agent.

2.  The strength of granule can be adjusted by pressure of rollers so as to control strength of granule.

3.  Sand-shaped irregular granules are produced.

4.  Large productive capability due to continuous production. High degree of automation to suit automatic production.

Key Application

Except those dangerous materials that are subject to explosion due to crushing and rubbing, most part of dry power materials can be directly granulated by this machine. If water-cooling is adopted for rollers by turning connectors, this machine can also be suited for granulation of heat sensitive materials.

Our Services

24 hours per day,365 days per year online service

Enquiry will be replied in 2 hours

One year warranty

OEM & ODM are available

Free spare parts for any breakdown under convincing eviden

About Us

Billicom is a group company specializing in dehydration treatment of various industrial materials, headquartered in Changzhou City, Jiangsu Province, with business in more than 20 countries and regions, selling products to customers all over the world. We are committed to innovative design and manufacturing, providing and serving high-value equipment solutions for industrial customers.

We provide customers with a wide range of industrial process solutions for material dehydration, including dryers, filtration equipment, evaporators, mixers, granulation equipment, packaging equipment, pumps, weighing equipment and heat exchangers. Our products serve global customers in chemical, food, pharmaceutical, mining, general industry and sludge treatment markets.

We are a manufacturer and after-sales service provider of highly engineered products and process solutions, which are widely used in various industrial manufacturing industries, including pumps, rotary valves, atomizers and industrial control systems. To provide high-quality, competitive price products and services to global customers.

FAQ

Q:Are you manufacturer or trading company?

A:We are group company 20 years experience professional manufacturer of drying machine,mixing machine,granulating machine.And we also have 20 years experience for exporting machines.

Q:Where is your factory located?

A:The factory located in Changzhou City,Jiangsu Province,near in Shanghai.Form Shanghai Pudong airprot to the factory is about 260Km,it need about 3 hours by car.

Q:If can make a testing in your factory?

A:Sure,our factory have Spray Dryer Machine for testing, you can take 10~50kgs raw material to our factory for testing.

Q:How Can I select the right Spray dryer Machine ?

A:We will help you choose the right type and model for Spray dryer Machine, by knowing the following information:

Liquid name and property: Solid contents(or water contents), viscosity , surface　tension and PH value.

Dried powder density residual water contents allowed, particle size, and maximum temperature allowed.

Output capacity: shift time daily .

Energy that can be supplied: steam pressure, electricity properly , fuel of coal, oil　and natural gas .

Control requirement: whether or not the inlet and outlet temperatures should be controlled.PLC or button type,electric component brand require.

Powder collection requirement: whether it’s necessary to use cloth bag filter and the requirement of the environment of the exhausted gas .

Other special requirements.
